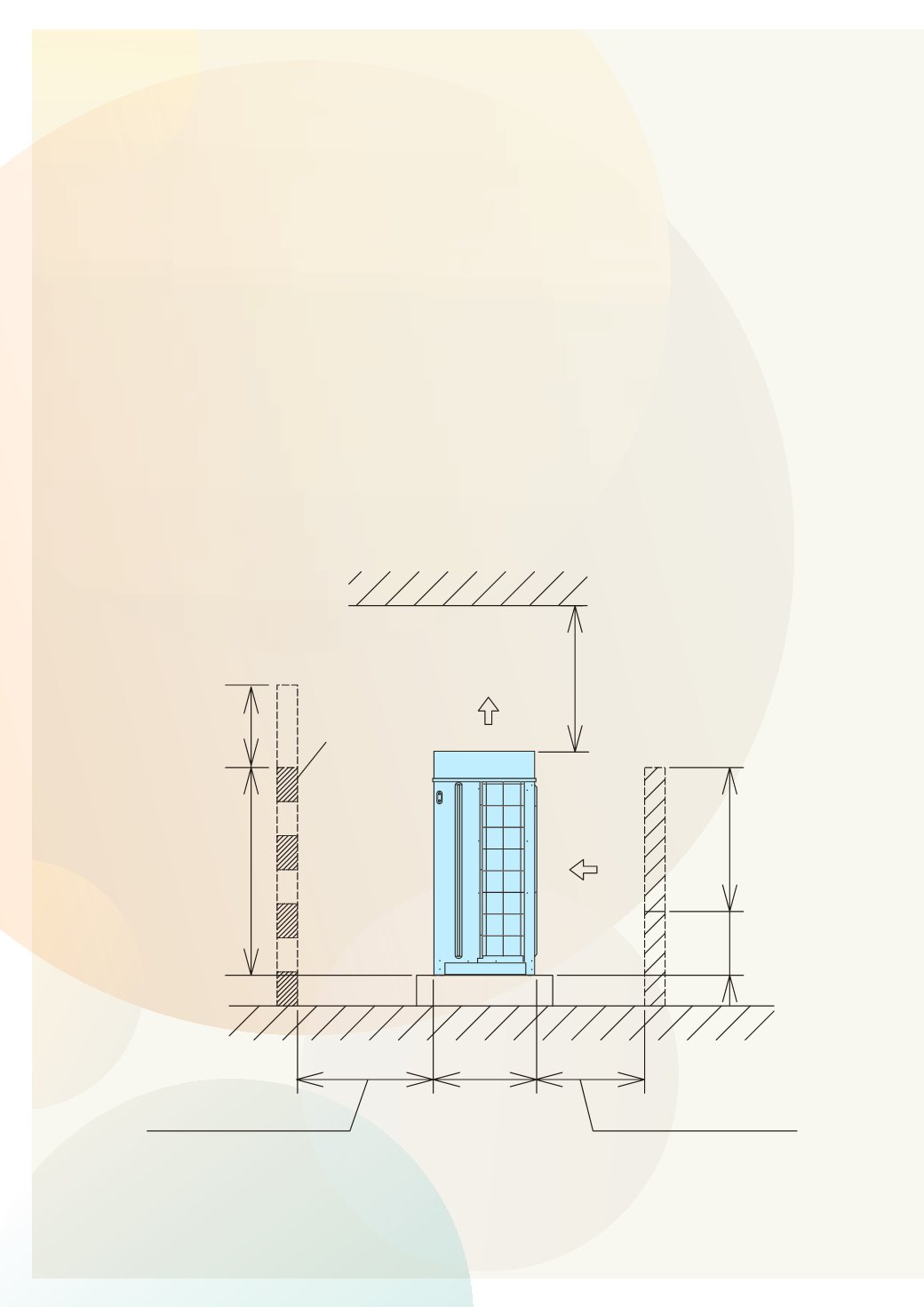

Service Space
General Installation
1. If the wall on the front side is over 1500mm,
the space of 500+h2/2mm is required.
2. If the wall on the rear side is over 500mmhigh,
the space of 300=h1/2mm is required.
3. Please refer to the Installation Manual for the
details of service space for the multi combinations.
e
ce when outdoor unit is installed as follows.
for air inlet and outlet are insufficient, it may cause a performa
due to insufficient air intake.
ice space is required for facilitating the maintenance.
(Unit: mm)
Min.
1500
Min. 500 + h2/2
Min. 300 + h1/2
1500
h2
h1
500
Front
Side
Vent Hole
Rear
Side
< Side View >
765
